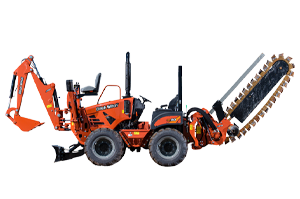

RT45 Ride-On Trencher
Rental's Most Requested Ride-On Trencher

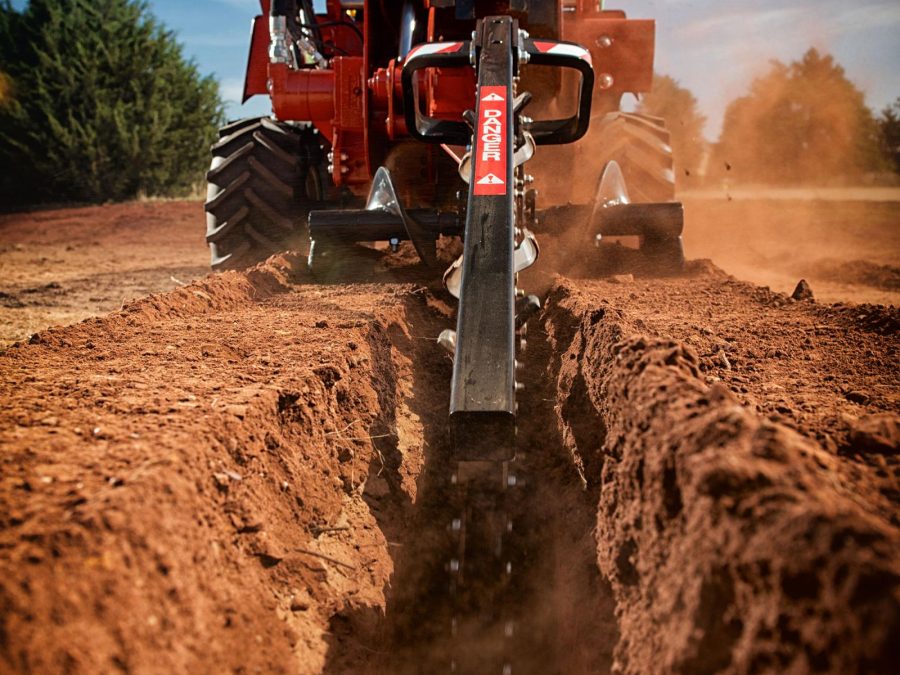

There's an easy way to remember the ideal machine for trenching 4- to 5-foot (1.2- to 1.5-m) trenches: the Ditch Witch RT45. With its direct-coupled, high-torque digging chain motor and Tier 4 engine, the RT45 has plenty of power to muscle through the earth—with your choice of trencher, backhoe, earth saw, vibratory plow, microtrencher, or combination trencher/plow attachments—while you enjoy its roomy and comfortable operator’s station. With all of its customer-driven design features, it’s no surprise that the RT45 has been the rental industry’s number one choice in its horsepower class for the last 50 years.
RT45
Power
Tier 4, 49-hp (36.5-kW) Deutz® diesel engine is designed for minimal maintenance and maximum operator productivity.
RT45
Productivity
Advanced air-filtration system designed to improve engine performance; air filter elements are easy to access and replace.
Direct-coupled, high-torque digging chain motor designed for increased production and reliability.
Engine service points are easily accessible from one side, simplifying maintenance.
RT45
Rugged Design
Advanced operator presence system designed to promote safety by stopping the engine when operator leaves the seat.

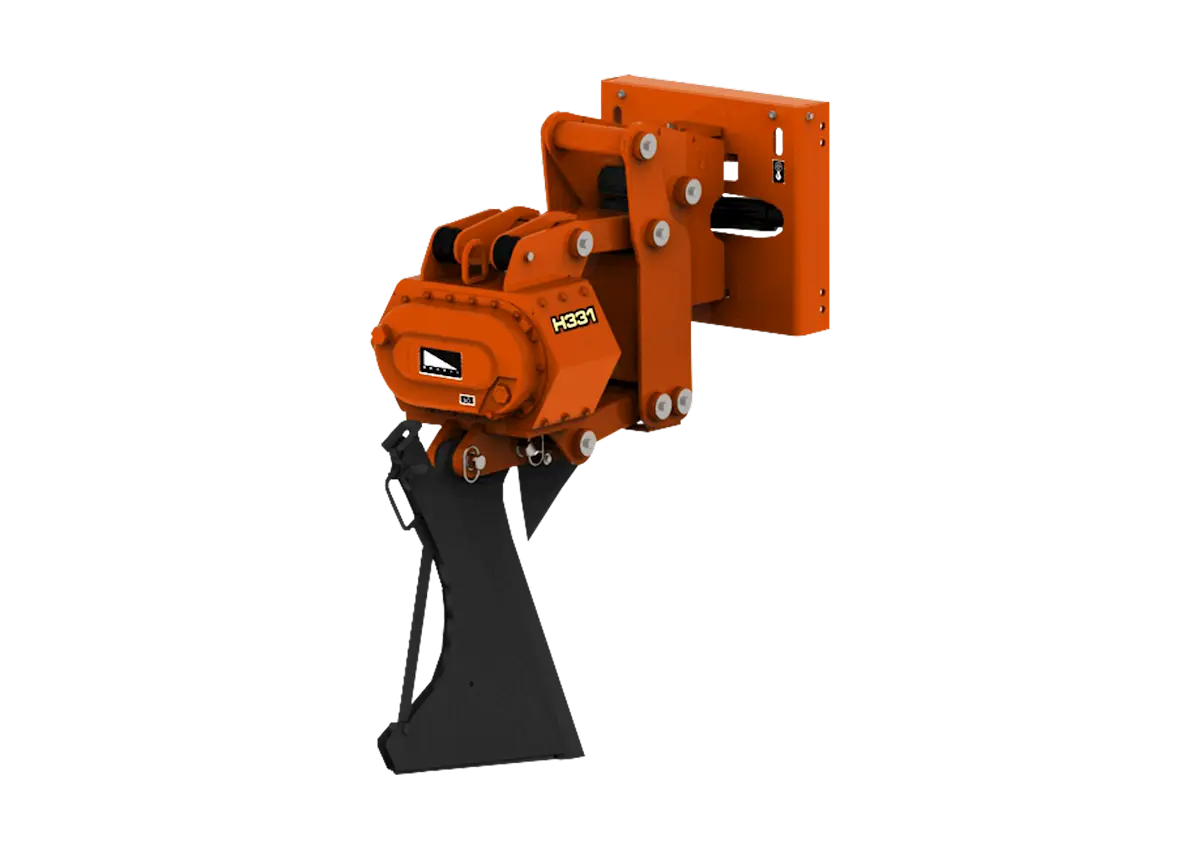

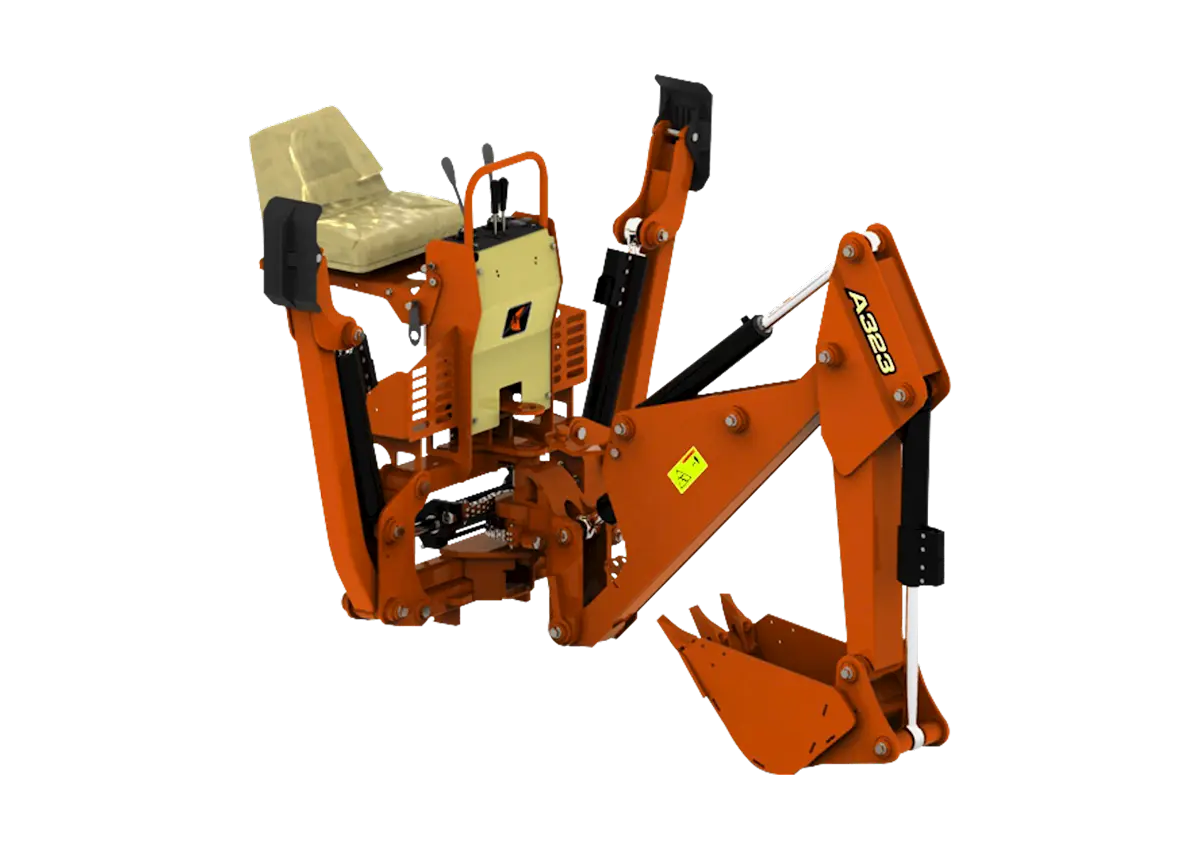

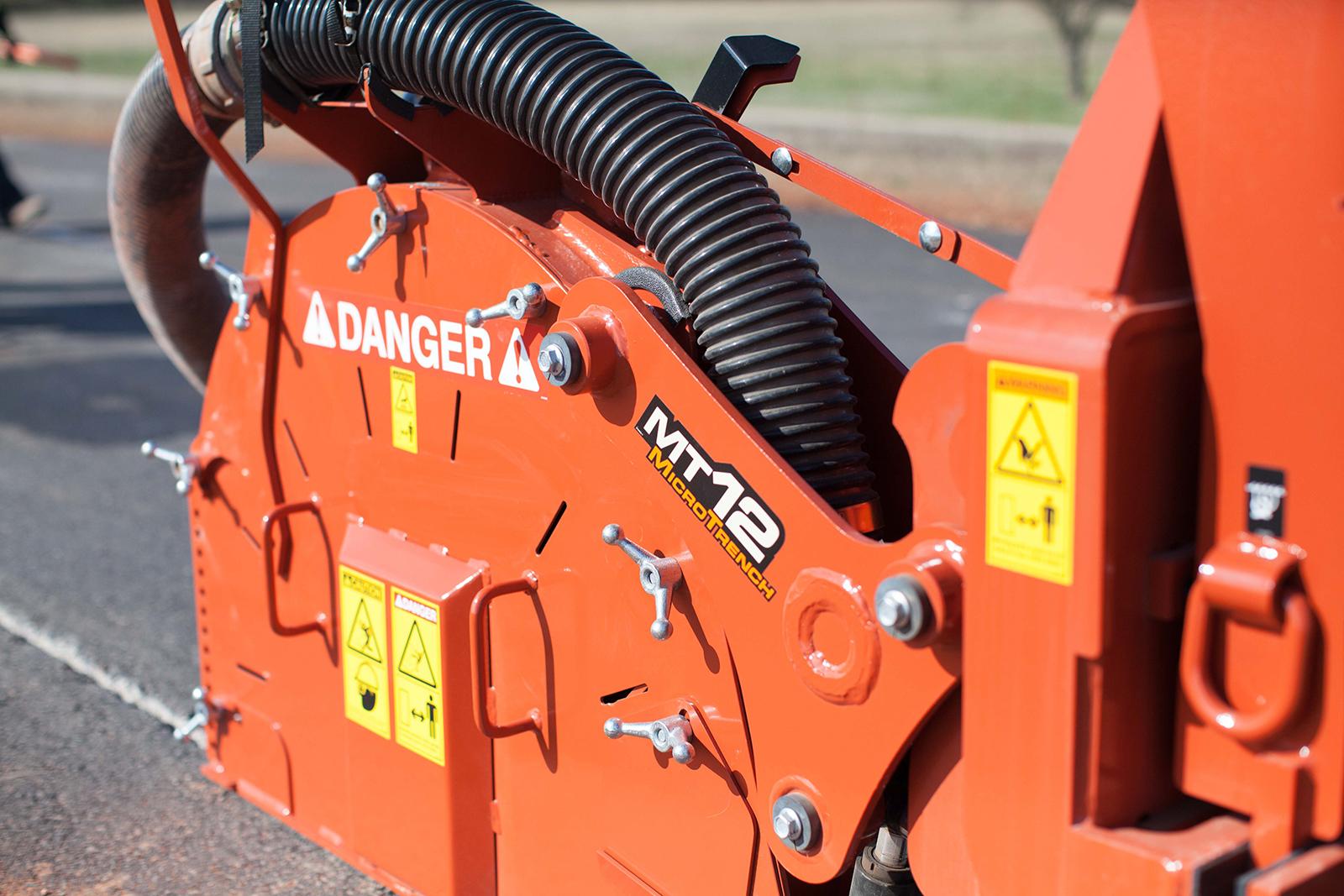

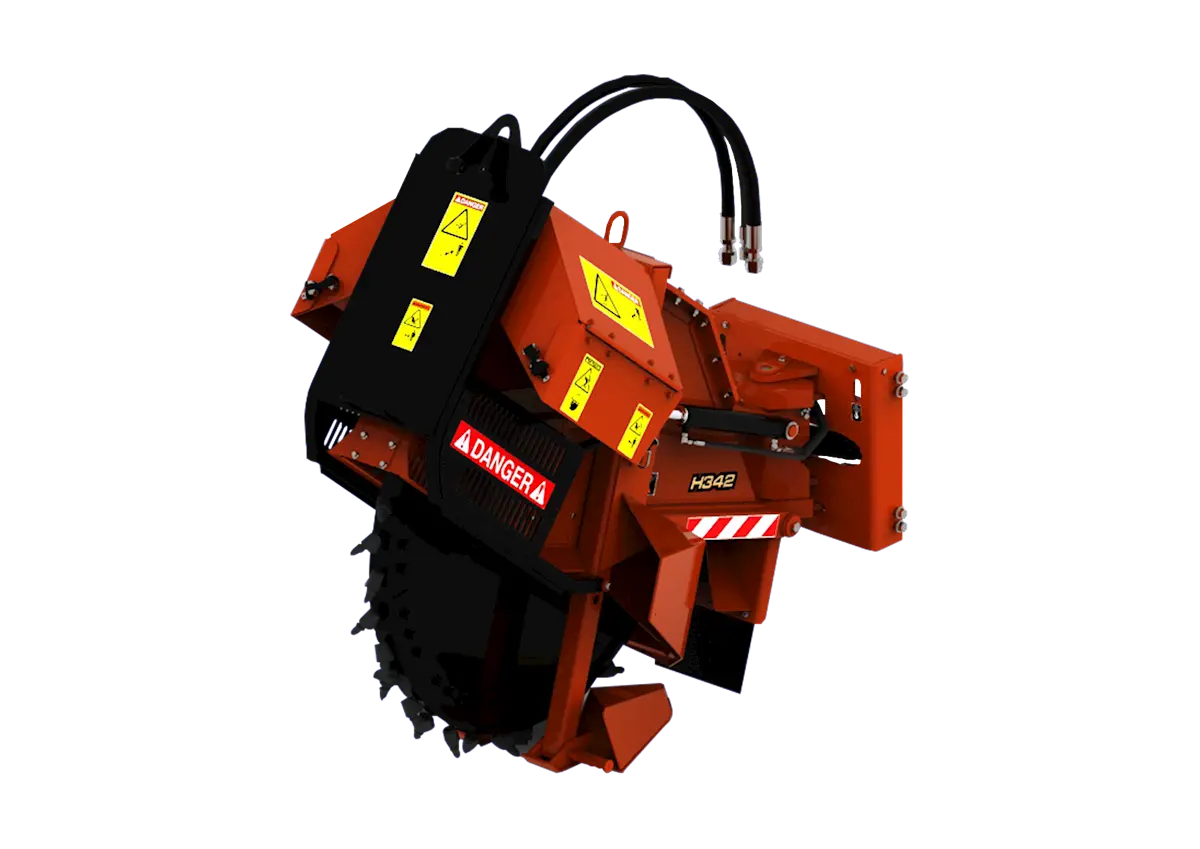

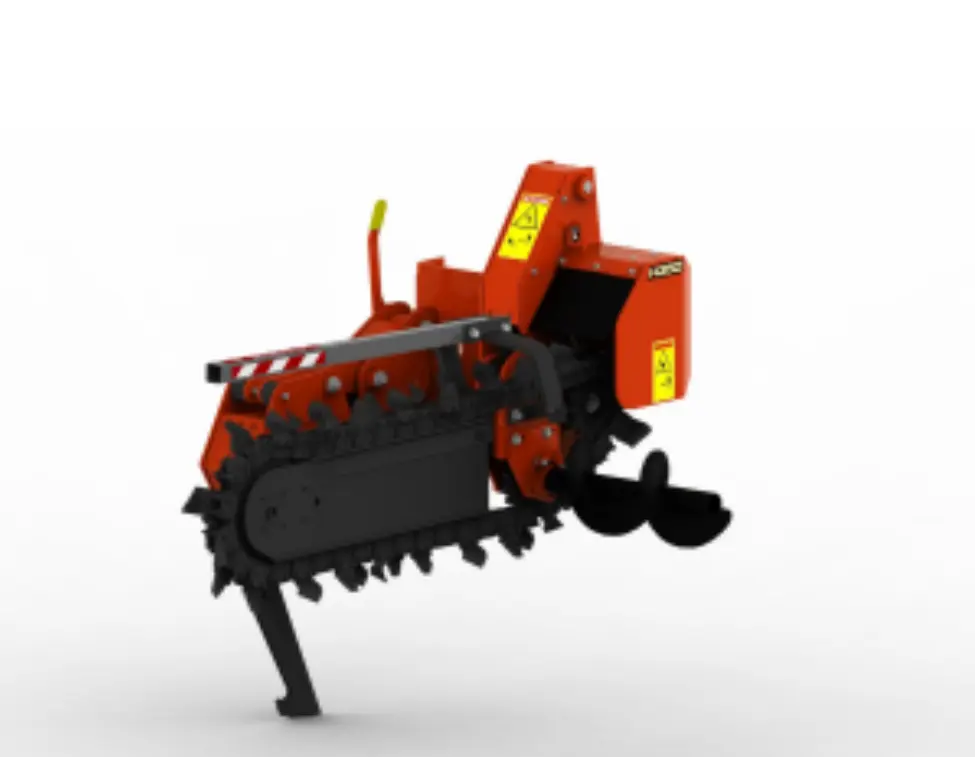

Outstanding versatility: attachments include a centerline or dual-position trencher, vibratory plow, earth saw, microtrencher, combination trencher/plow, and backhoe.
Monochrome LCD display provides all engine diagnostics and easy-to-read gauges.
RT45
Ease of use
User-friendly operation, with color-coded speed/direction and attachment controls; backfill blade controlled by a highly responsive joystick.
Easy-to-use foot pedal controls the infinitely variable ground drive forward and reverse.
RT45
Operator's Station
Operator’s station features one-piece molded instrument console designed to provide ample legroom and greater visibility.
Exhaust system is mounted under a composite hood with a horizontal exhaust pipe, diverting noise and hot air from the operator.
RT45
Superior Customer Support
Your Ditch Witch equipment is backed by a worldwide network of dealers you can count on for unmatched commitment to your success. From genuine Ditch Witch parts to factory-trained service to expert advice, your Ditch Witch dealer has it all for you.
Available with the Orange Intel™ Fleet Management System, equipment owners can keep track of their fleet’s performance with critical insights to help increase business efficiency and profitability.
From the basics of HDD and vacs to the specifics of operating stand-on skid steers, trenchers and more, the Ditch Witch organization is your go-to resource for the best training in the industry. Talk to your local dealer to learn more about our Ditch Witch Certified Training programs.
Attachments
Specifications
Dimensions
| Dimensions | U.S. | Metric | |
|---|---|---|---|
| Height | 86 in | 2.18 m | |
| Length, transport | 155 in | 3.9 m | |
| Width | 64 in | 1.6 m | |
| Basic unit weight | 3,240 lb | 1470 kg | |
| Wheelbase | 48 in | 1.22 m | |
| Spoil discharge reach, min to max | 17-20 in | 430-510 mm | |
| Tread | 46 in | 1.2 m | |
| Ground clearance | 7 in | 180 mm |
Power (Tier 4)
| Power (Tier 4) | U.S. | Metric | |
|---|---|---|---|
| Engine | Duetz® D2.9 L4 | ||
| Fuel | Diesel | ||
| Cooling medium | Water | ||
| Injection | Direct | ||
| Aspiration | Natural | ||
| Number of cylinders | 4 | ||
| Displacement | 177 in3 | 2.9 L | |
| Bore | 3.6 in | 92 mm | |
| Stroke | 4.3 in | 110 mm | |
| Gross power | 49 hp | 36.5 kW | |
| Rated speed | 2,600 rpm | ||
| Emissions compliance | EPA Tier 4 | EU Stage IIIA |
Power (Tier 4i)
| Power (Tier 4i) | U.S. | Metric | |
|---|---|---|---|
| Engine | Deutz D2011L3 | ||
| Fuel | Diesel | ||
| Cooling medium | Oil | ||
| Injection | Direct | ||
| Aspiration | Natural | ||
| Number of cylinders | 3 | ||
| Displacement | 142 in3 | 2.3 L | |
| Bore | 3.7 in | 94 mm | |
| Stroke | 4.41 in | 112 mm | |
| Manufacturer's gross power rating (SAE J1995) | 42.2 hp | 31.5 kW | |
| Rated speed | 2,300 rpm | ||
| Emissions compliance (LRC) | EPA Tier 4i | EU Stage IIIA |
Power Train
| Power Train | U.S. | Metric | |
|---|---|---|---|
| Ground drive transmission | Hydrostatic drive, infinitely variable from zero to maximum, foot-pedal and hand-lever operated speed/direction control | ||
| Differentials | Dana model 44, limited slip; Dana model 60, limited slip | ||
| Parking brake | Disc, hand-operated | ||
| Service brake | Ground drive speed/direction control brakes machine hydraulically when moved to neutral position | ||
| Attachment drive transmission | Hydrostatic, lever operated, speed infinitely variable from zero to maximum forward w/limited stroke reverse | ||
| Trencher drive transmission | Hydrostatic |
Operation
| Operation | U.S. | Metric | |
|---|---|---|---|
| Forward speed, max | 4.7 mph | 7.6 km/h | |
| Reverse speed, max | 2.7 mph | 4.4 km/h | |
| Vehicle clearance circle | |||
| Front steer only | 28 ft | 8.5 m | |
| Coordinated steer only | 20 ft | 6.1 m | |
| Digging chain speed, max (2,600 rpm engine speed) | 460 fpm | 140 m/min | |
| Operating weight | 5,375 lb | 2438 kg | |
| Headshaft speed, max (2,600 rpm engine speed) | 233 rpm | 233 r/min |
Hydraulic System @ 2,600 rpm
| Hydraulic System @ 2,600 rpm | U.S. | Metric | |
|---|---|---|---|
| Ground drive pump capacity | 31.5 gpm | 119 l/min | |
| Ground drive pump relief pressure | 3,650 psi | 252 bar | |
| Attachment drive | |||
| Trencher | 5,000 psi | 345 bar | |
| Plow/saw | 3,750 psi | 259 bar | |
| Attachment pump capacity | 31.5 gpm | 119 l/min | |
| Auxiliary pump capacity | 11.5 gpm | 44 l/min | |
| Auxiliary pump relief pressure | 2,100 psi | 145 bar |
Hydraulic System Tier (4i) @ 2,300 rpm
| Hydraulic System Tier (4i) @ 2,300 rpm | U.S. | Metric | |
|---|---|---|---|
| Ground drive pump capacity | 29.3 gpm | 111 l/min | |
| Ground drive pump relief pressure | 3,750 psi | 258 bar | |
| Attachment drive | |||
| Trencher | 5,000 psi | 345 bar | |
| Plow/saw | 3,750 psi | 259 bar | |
| Attachment pump capacity | 29.3 | 111 l/min | |
| Auxiliary pump capacity | 10.2 gpm | 39 lpm | |
| Auxiliary pump relief pressure | 2,500 psi | 172 bar |
Noise Level
| Noise Level | U.S. | Metric | |
|---|---|---|---|
| Operator | 96 dBA sound pressure per ISO 6394 | ||
| Exterior | 108 dBA sound power per ISO 6393 |
Fluid Capacities
| Fluid Capacities | U.S. | Metric | |
|---|---|---|---|
| Fuel tank | 13 gal | 49 L | |
| Engine oil | 6.4 qt | 6.1 L | |
| Hydraulic system | 13 gal | 49 L | |
| Hydraulic reservoir | 9.5 gal | 36 L | |
| Coolant | 3 gal | 11 L |
Backfill Blade
| Backfill Blade | U.S. | Metric | |
|---|---|---|---|
| Blade width | 64 in | 1.6 m | |
| Blade height | 14 in | 355 mm | |
| Lift height, above ground | 12 in | 300 mm | |
| Blade drop, below ground | 8 in | 200 mm | |
| Swing angle, max | |||
| Left/right | 28° | ||
| Tilt angle | |||
| Up/down | 11° |
Tires/Pressure
| Tires/Pressure | U.S. | Metric | |
|---|---|---|---|
| 26 x 12-12, 4-ply bar lug | 1,780 lb @ 20 psi | 807 kg @ 1.40 bar | |
| 29 x 12.50-15, 8-ply bar lug (optional) | 2,150 lb @ 30 psi | 975 kg @ 2.07 bar |
Battery
| Battery | U.S. | Metric | |
|---|---|---|---|
| Group | 26/26R/70 | ||
| SAE reserve capacity rating | 165 min | ||
| Cold crank rating @ 0°F (-18°C) | 850 amps | ||
| Auxiliary power outlet | 12V, 5 amps | ||

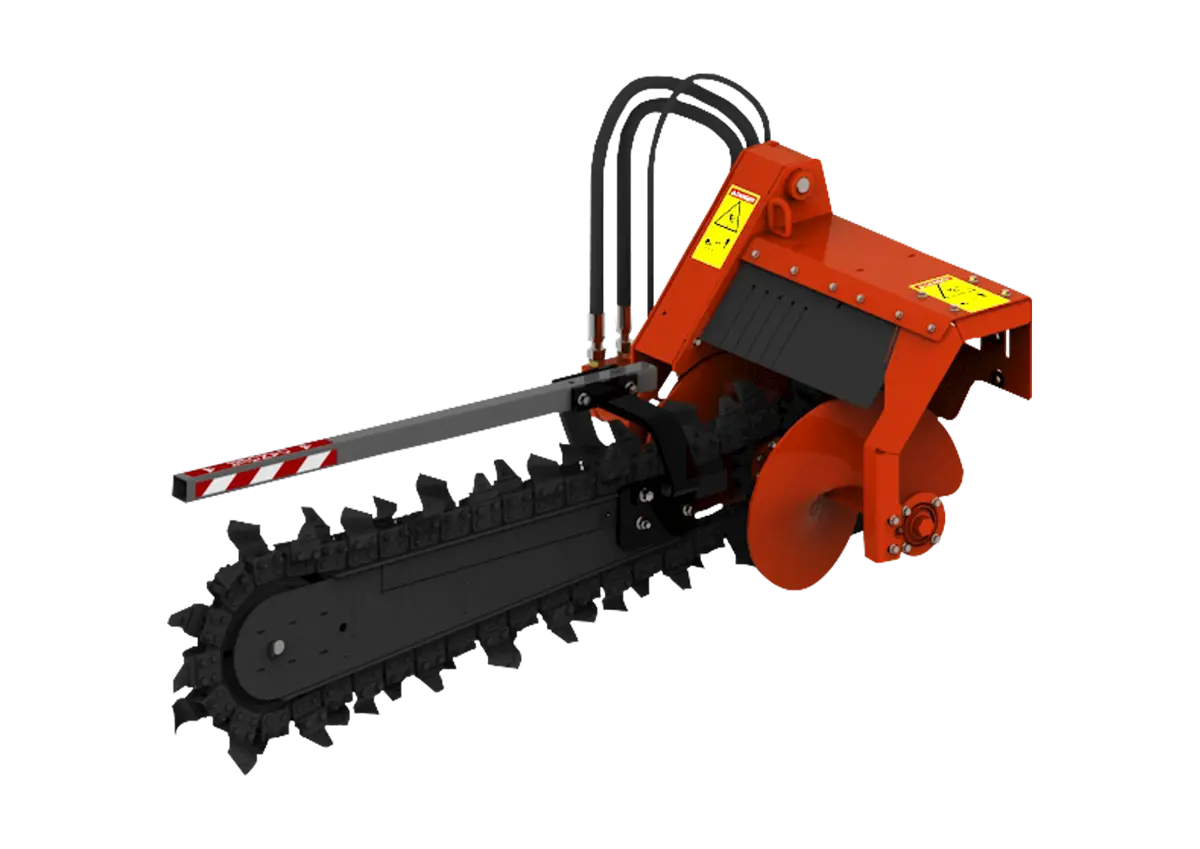

| * Dimensions are based on H313 attachment and shortest roller boom length, 26 x 12.00-12 standard tire and wheel and 12-inch pivot. | |||
| ** Operating weight based on H313 attachment, longest roller boom, heaviest chain, 175-lb operator, and 26 x 12.00-12 tires. | |||
| Specifications are general and subject to change without notice. If exact measurements are required, equipment should be weighed and measured. Due to selected options, delivered equipment may not necessarily match that shown. |
