DIRECTIONAL DRILLS
From the compact JT5 to the heavy-duty JT100, there’s an unbeatably efficient Ditch Witch directional drill for every type of jobsite and installation.
Directional Drills

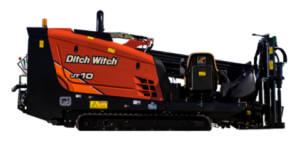

JT10
Power. Performance. Productivity. The Ditch Witch JT10 has it all. Powered by a Tier 4, 66-hp (49 kW) Deutz® diesel engine, the machine is the most powerful drill in its class. It offers 10,000 lbs (44 kN) of pullback force, providing the advanced strength and power of bigger drills, combined with the simplicity and easy operation of a compact machine.
JT20
The JT20 lets you do more so you can make more. With plenty of power packed into a compact size and new features like an easy-to-use carve mode and time-saving LCD display, the JT20 helps you work faster so you can tackle more jobs. More productivity. More profits. You asked for it. And you got it with the JT20.
JT20XP Drill Package
This innovative drilling solution combines the JT20XP drill and XP44 mixing system, giving operators a full 118-hp package without compromising jobsite footprint.
JT25
The Ditch Witch JT25 is an exceptionally powerful and productive horizontal directional drill designed specifically for—and with input from—the utility contractor.
JT30
Our customers wanted more power to perform all functions at once. Both the JT30 and its counterpart, the JT30 All Terrain, are the most powerful and quietest drills in their class—by a long shot.
JT40
Built from direct customer feedback and input, the Ditch Witch JT40 is a complete re-imagination of industry-leading horizontal directional drill (HDD) units. Designed with next-generation enhancements, the machine features several new patents to optimize performance, productivity and operator comfort.

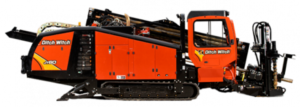

JT60
With the new JT60 horizontal directional drill, you’ll recognize many of the features you’ve grown to appreciate: the proven, intuitive electronics and the rugged and reliable undercarriage, to name two.

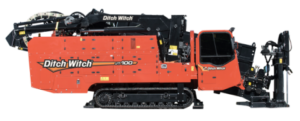

JT100
The JT100 is designed to deliver power where it's needed to complete the bore in the most efficient manner, without compromising power to other machine functions.
All Terrain
JT30 All Terrain
The 160-hp (119-kW) JT30 All Terrain gives you class-leading power, a higher-capacity pump and advanced electronics in an easy-to-operate package.

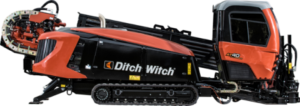

AT40 All Terrain
Optimized for industry-leading performance and productivity when drilling in hard rock conditions, the Ditch Witch AT40 is designed with an advanced version of the proven Ditch Witch All Terrain drilling system.
JT60 All Terrain
Equipped with many standard, field-proven features such as simplified electronics and a powerful undercarriage, while offering exceptional rotational torque, thrust and pullback.
JT100 All Terrain
The Ditch Witch JT100 All Terrain directional drill is a 268-hp (200-kW) rock-drilling powerhouse with 100,000 lb (445 kN) of pullback.
All Terrain Air Hammer
With the All Terrain Air Hammer, Ditch Witch All Terrain directional drills can penetrate the hardest rock.
Subsite® Electronics HDD Guidance
Commander™ 7
With this 7” color HDD Guidance Display, the drill operator can monitor the uploaded bore plan while drilling and have access to all vital tracker data as well. Part of the Green Ops™ process.
TK RECON™ Series HDD Guidance System
The TK RECON Series offers improved radio performance with increased interference immunity and faster information transfer so you can be more productive.
GREEN OPS™
Green Ops™ is a better way to bore. A more complete HDD Guidance process that leverages technology and information to give you a clear plan, more control, and faster reporting for safer, more productive jobs.
TMS Plus
Plan your bore with TMS Plus and get information on bend radius of the drill pipe, monitor real-time progress, generate a completed survey and more. Part of the Green Ops process.
FIELD SCOUT™
Use your mobile device to walk the bore-path and create a basic bore plan with waypoints and obstacles. GPS connectivity let’s you see your plan on Google Earth™. After the bore, view your As-Built and bore plan together. Part of the Green Ops™ process.
SCOUTVIEW™
View your Field Scout™ bore plan on the Commander™ 7 screen through this app. You can monitor the bore live, log bore data, and display bore info when approaching a waypoint/obstacle—all from the drill seat. Part of the Green Ops™ process.
TSR Mobile
TSR Mobile lets you download HDD bore information directly to your mobile phone, tablet or computer for faster, more accurate reporting. Part of the Green Ops™ process.
HDD Beacons
Only Subsite Electronics HDD beacons are repairable, saving you money compared to beacon replacement.
