BACKREAMERS

BACK TO HDD TOOLING
HDD CATALOG
CompactFluted_w_clevis

Compact Fluted HD Backreamer

The Compact Fluted HD Backreamer is built with heavy-duty features like integrated swivel options and replaceable hardened-steel nozzles for greater fluid distribution and flow flexibility. Its heavy-cast body and tapered base compact soils to provide smooth pushback capability and easier product installation. Featuring an improved cutting structure, hardened carbide teeth and spiral-fluted design, the Compact Fluted HD delivers the best performance in hard, compacted ground conditions, including chuck rock and cobble. Conditions vary. Your results don’t.

>>Watch Video<<

PART NUMBERS
KODIAK™ HD BACKREAMER

KODIAK™ HD BACKREAMER

Its name says it all. The Kodiak is the ultimate backreamer for challenging conditions. Designed for extreme soils like rock, chunk rock and cobble, its spiraling flutes allow for cuttings and fluid to flow behind the reamer over the product. It also features an improved plate design and tapered tail end to better accommodate pushing back.

>>Watch Video<<

PART NUMBERS
BEAVERTAIL HD BACKREAMER

BEAVERTAIL HD BACKREAMER

With its low-weight design and low-resistance profile, the Beavertail allows for more efficient fluid-mixing capabilities downhole, requiring less horsepower for rotation. It features a replaceable, hardened-steel Allen-head nozzle for flow flexibility and consistent carbide Shark® teeth for improved life. >>Watch Video<<

PART NUMBERS
WARTHOG™ HD BACKREAMER

WARTHOG™ HD BACKREAMER

The Warthog’s dynamic cutting structure is designed to reduce drag and use lower torque pressures downhole for superior backreaming efficiency. Its carbide-reinforced Shark teeth carve through everything from hard, compacted soils to sandstone and shale. Along with its box design, allowing for flexibility in setting up ideal configurations, the Warthog features a through-flow shaft to accommodate stacking reamers for increased production. >>Watch Video<<

PART NUMBERS
SANDHOG HD BACKREAMER

SANDHOG HD BACKREAMER

The Sandhog Backreamer is a triple-action backreamer designed for aggressive cutting, mixing and packing giving you the best-prepared bore path for pullback in sandy and soft soils. Strategically engineered to cut the hole to allow the barrel-shaped body to compact true to size and give maximum capacity for fluid flow for product pullback in unstable soil conditions.

PART NUMBERS
ROCK MONSTER™ HD

ROCK MONSTER™ HD

Engineered to improve longevity in a variety of drilling conditions, the Ditch Witch® Rock Monster™ HD Backreamer features EdgeGuard™ protection, which increases bit life by protecting the seal and bearing. Patented High Energy Tumbling (HET™) inserts provide fracture toughness and wear resistance. The durable design maximizes weight on the bit, increasing productivity and performance. Plus, the Rock Monster is available with interchangeable nozzles in multiple sizes so you can customize fluid flow and maximize your effectiveness.

PART NUMBERS
Swab Backreamer

Swab Backreamer

The Swab Backreamer is designed for direct pullback for All-Terrain drills in rocky and hard soils. This backreamer directly connects to All-Terrain drill pipe without the use of connectors, increasing productivity and jobsite efficiency.

PART NUMBERS
EZ BACKREAMER

EZ BACKREAMER

Designed for direct connections to the EZ connect assembly, this backreamer is simple, effective and fast-connecting tool for small diameter installations in soft to medium-hard soil conditions.

PART NUMBERS
EZ BACKREAMER

FLANGED SWIVEL / STATIC PLATE

Utilizing high-performance components to extend life and featuring a new clevis design, our flange swivel options eliminate the need for multiple connections between the reamer and product. They also position the product closer to the reamer, reducing the possibility of binding.

PART NUMBERS

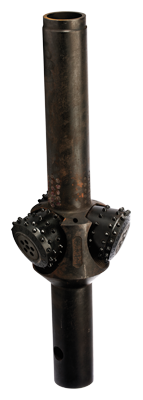

ROCKMASTER® HOLE OPENER

ROCKMASTER® HOLE OPENER

Designed for heavy or solid rock bores, the Rockmaster is available in four reamer body sizes. Features include replaceable mill tooth or TCI (tungsten carbide insert) cutters that are field-replaceable and gauge-protected for extended life. Hole diameters range from 6 in (152 mm) to 22 in (559 mm), depending on the reamer body and cutters used.

PART NUMBERS

REPLACEMENT CUTTER SETS

PART NUMBERS
