JT28 Directional Drill

Features &
Benefits
Power

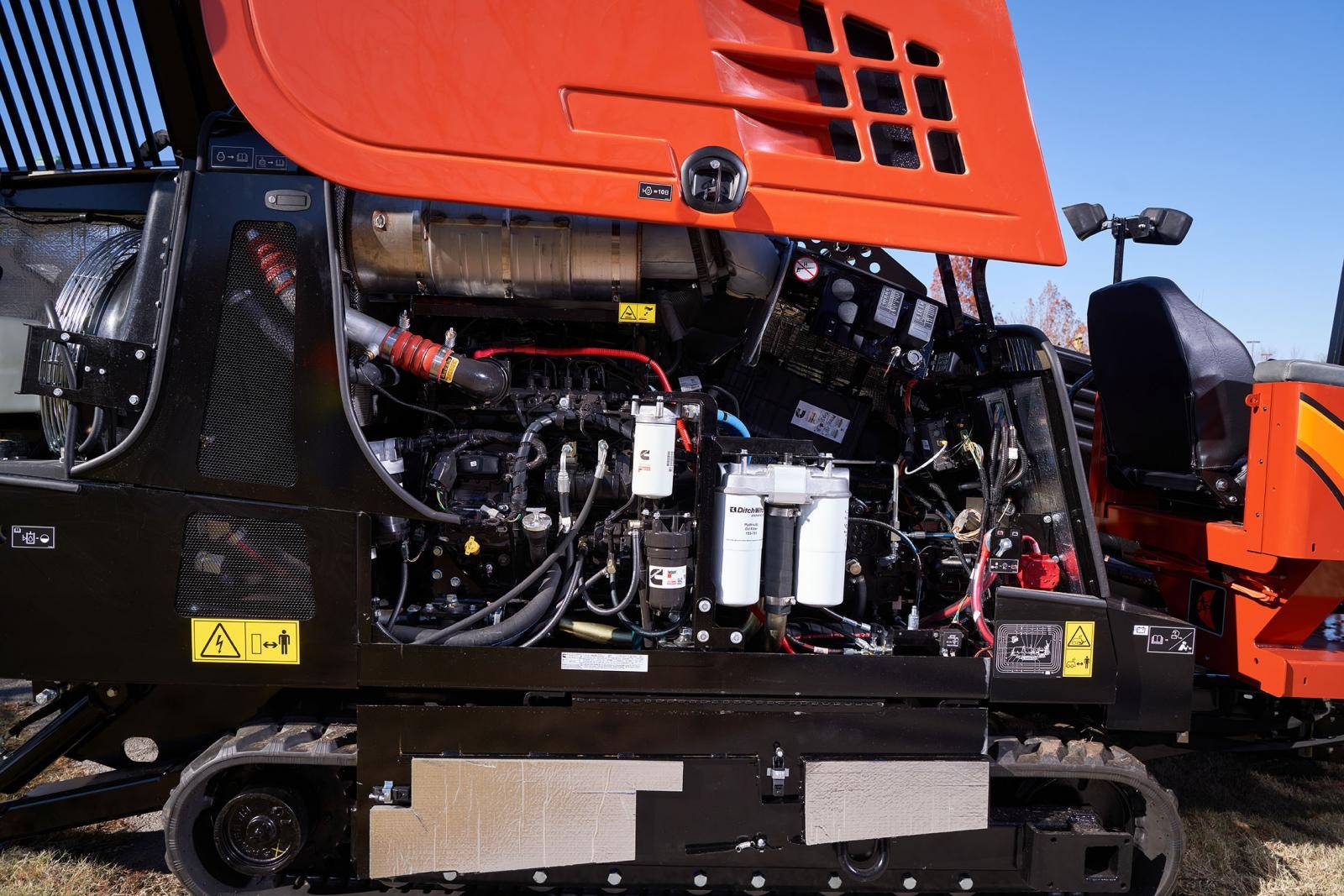

A 130-hp (97-kW) Tier 4 Cummins® diesel engine is the most power in its class. 28,000 lb (124.6 kN) of thrust and pullback provides the power to efficiently get the job done and move on to the next. An exclusive rotational drive with 4,200 ft·lb (5694 N·m) of torque and a unique, single-motor system results in smoother operation.

Features &
Benefits
Productivity

Narrower operational width provides greater maneuverability and productivity in tight spaces. Intuitive, easy-to-use carve mode simplifies operation and improves productivity, making it exceptionally easy to install pipe and cables of up to 12 inches (30 cm) in diameter at lengths of up to 500 feet (152 m).

Features &
Benefits

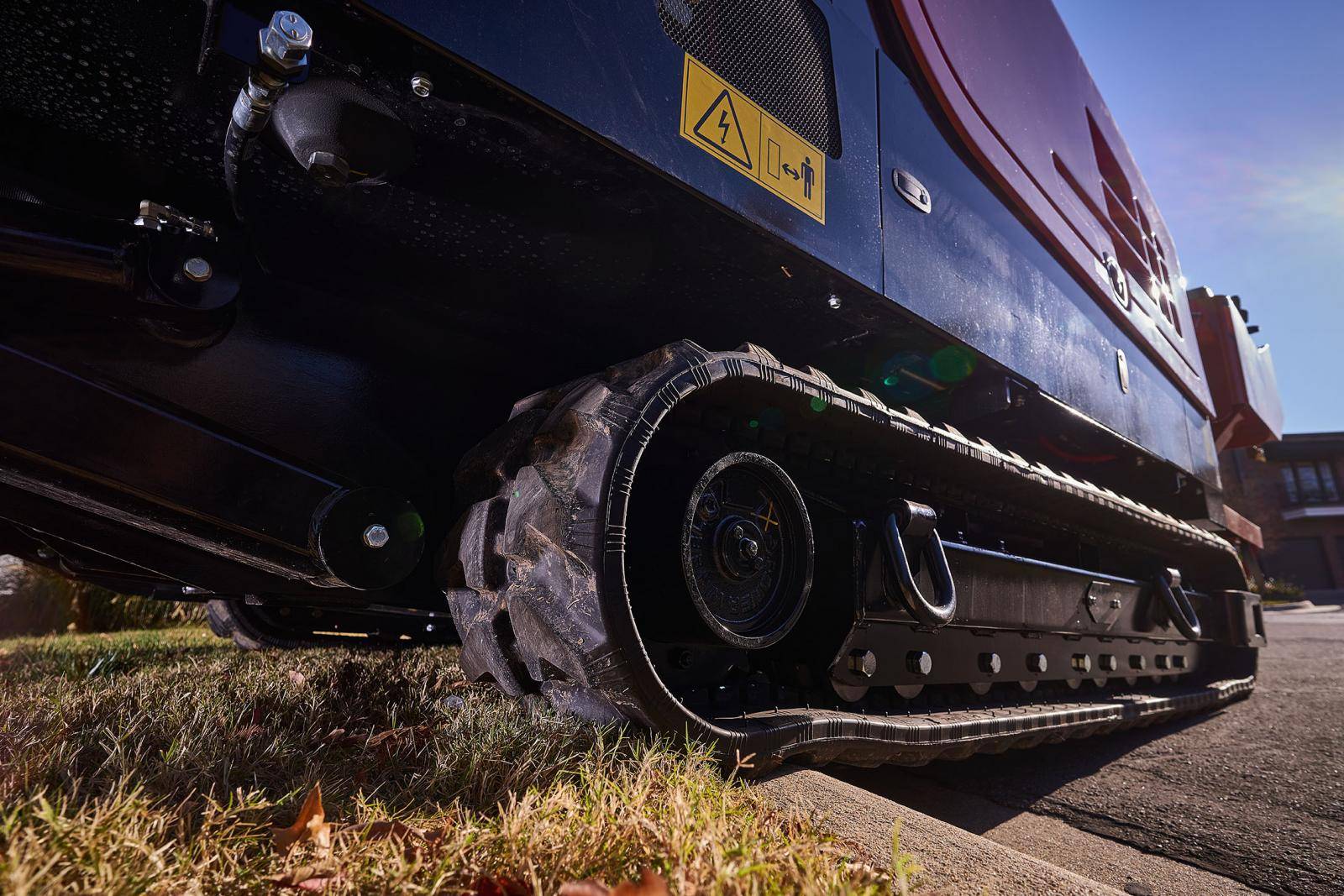

Innovative Design

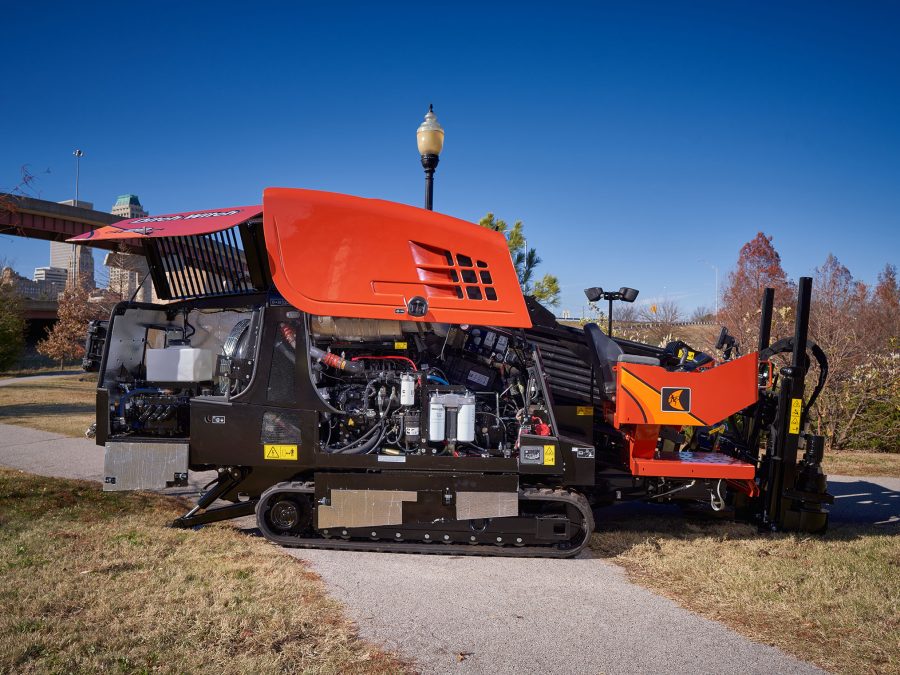

Simple, field-proven pipeloading system with a lower center of gravity helps increase stability. Dual-pivot drill frame allows for steeper entry angles without raising tracks off the ground. No grease zerks and all daily maintenance points are in an easy-to-access location minimizing upkeep and maximizing uptime.

Features &
Benefits

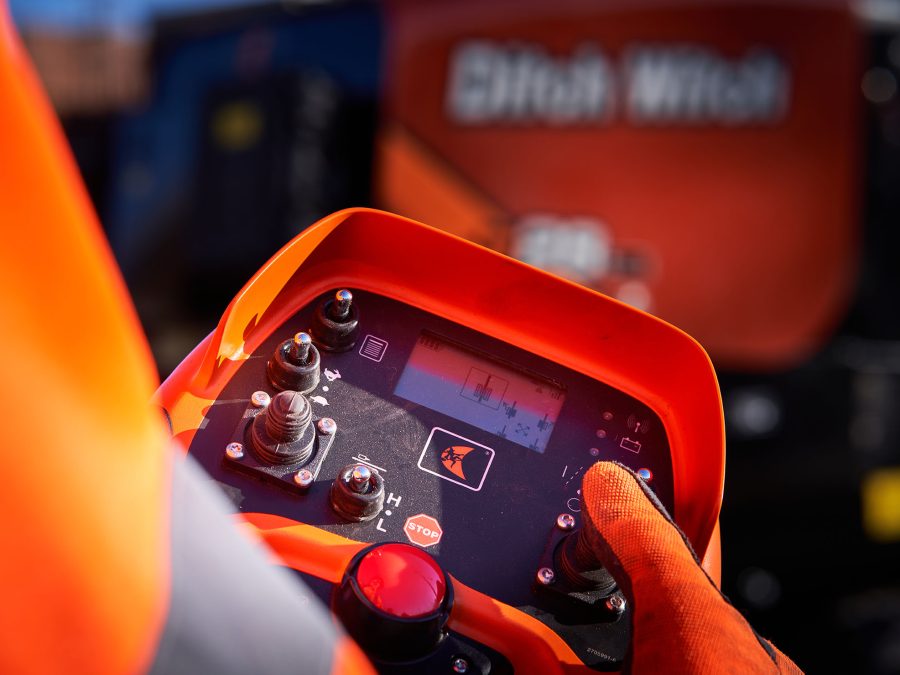

Operator’s Station

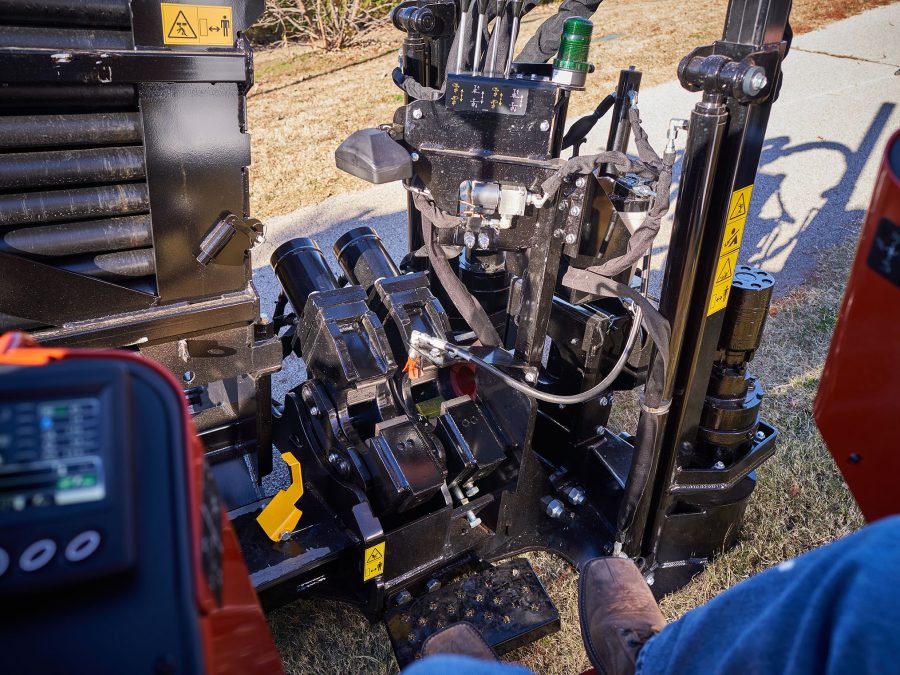

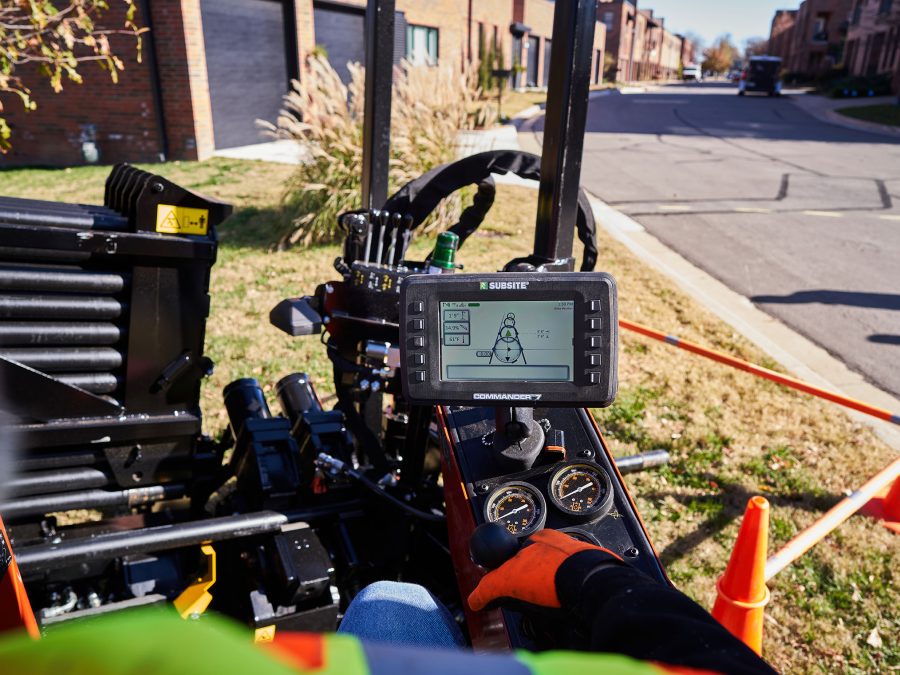

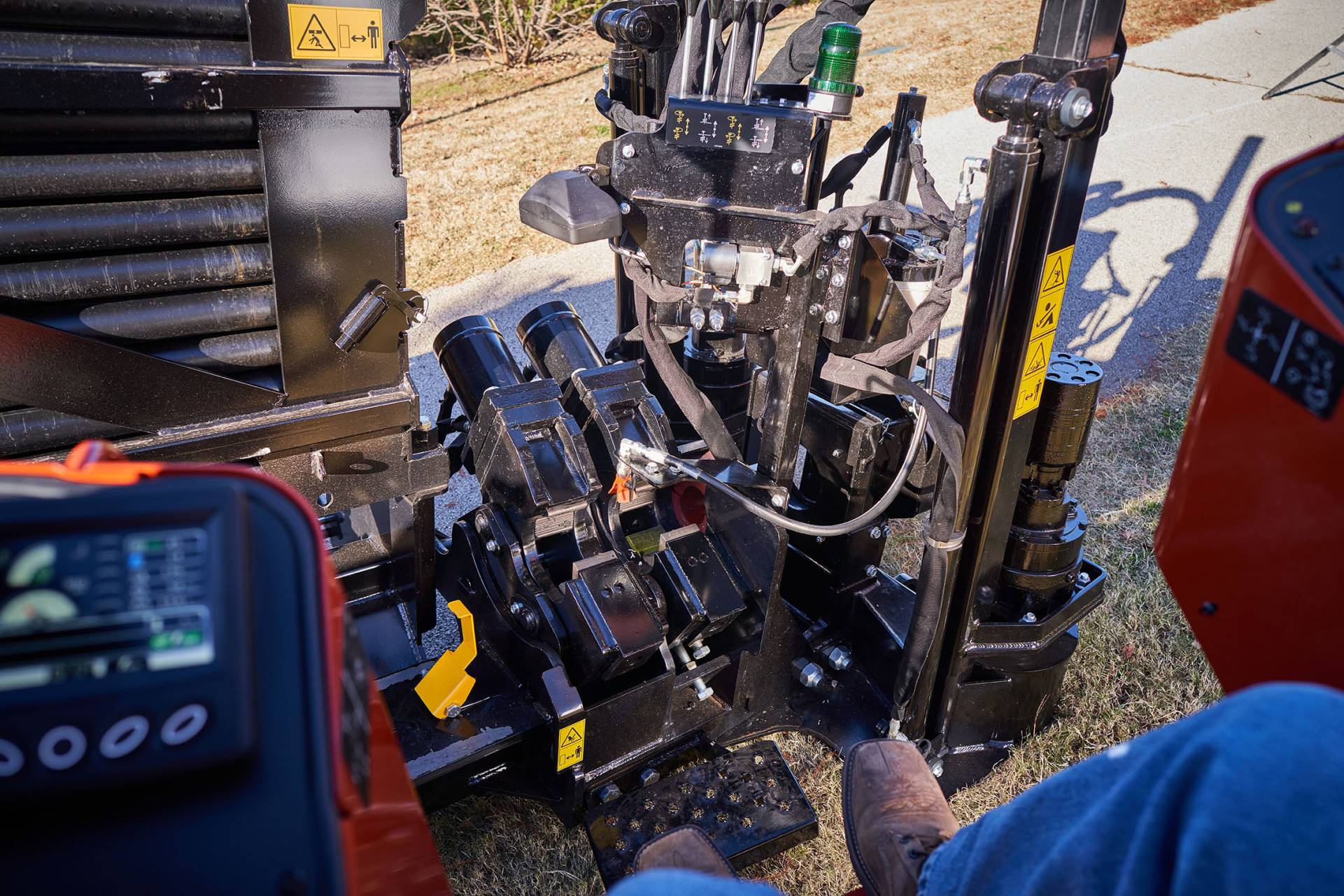

A comfortable operator’s station built from direct customer feedback offers you the choice of single-handled control or dual joysticks for more thrust and rotational control, minimizing training time. Open-top vise wrenches are angled toward the operator, helping provide an excellent view of the tool joint when making up and breaking out pipe. LCD display provides engine diagnostics and informational messages directly to you.

Features &
Benefits
Superior Customer Support

Your Ditch Witch equipment is backed by a worldwide network of dealers you can count on for unmatched commitment to your success. From genuine Ditch Witch parts to factory-trained service to expert advice, your Ditch Witch dealer has it all for you.
