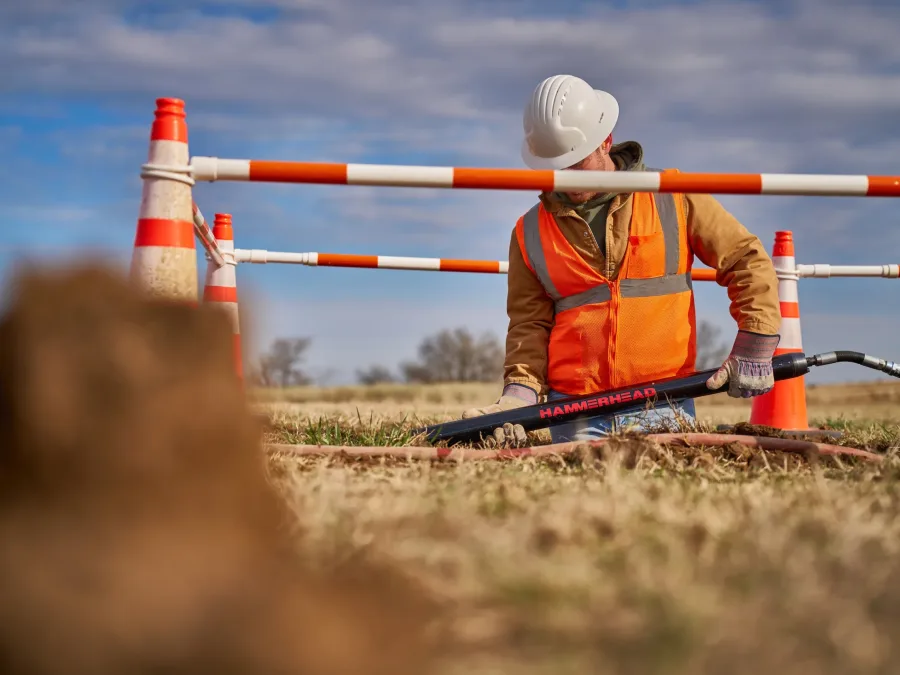

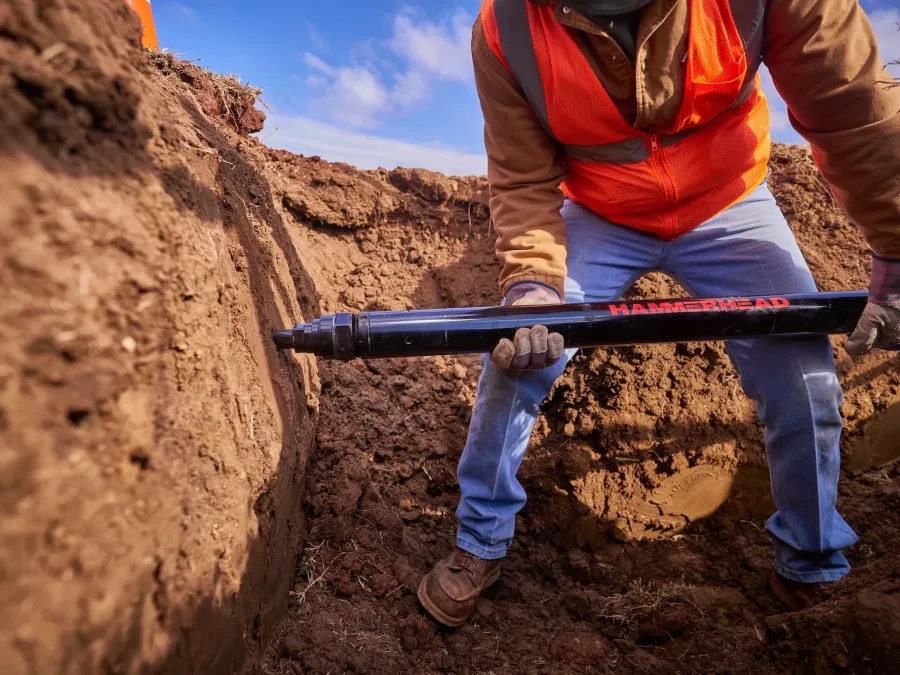

The revolutionary HammerHead Catamount™ line of pneumatic piercing tools represents the greatest advancement in piercing tool technology since the exclusive HammerHead® clamped rear anvil was introduced in 1989. Only Catamount tools have a reciprocating head that pneumatically resets itself after each impact—no mechanical springs that wear out and have to be replaced. For ground conditions ranging from average to hard, Catamount has the right amount of everything you need.

KEY FEATURES

DETAILS

LITERATURE

1 2

KEY FEATURES, CATAMOUNT

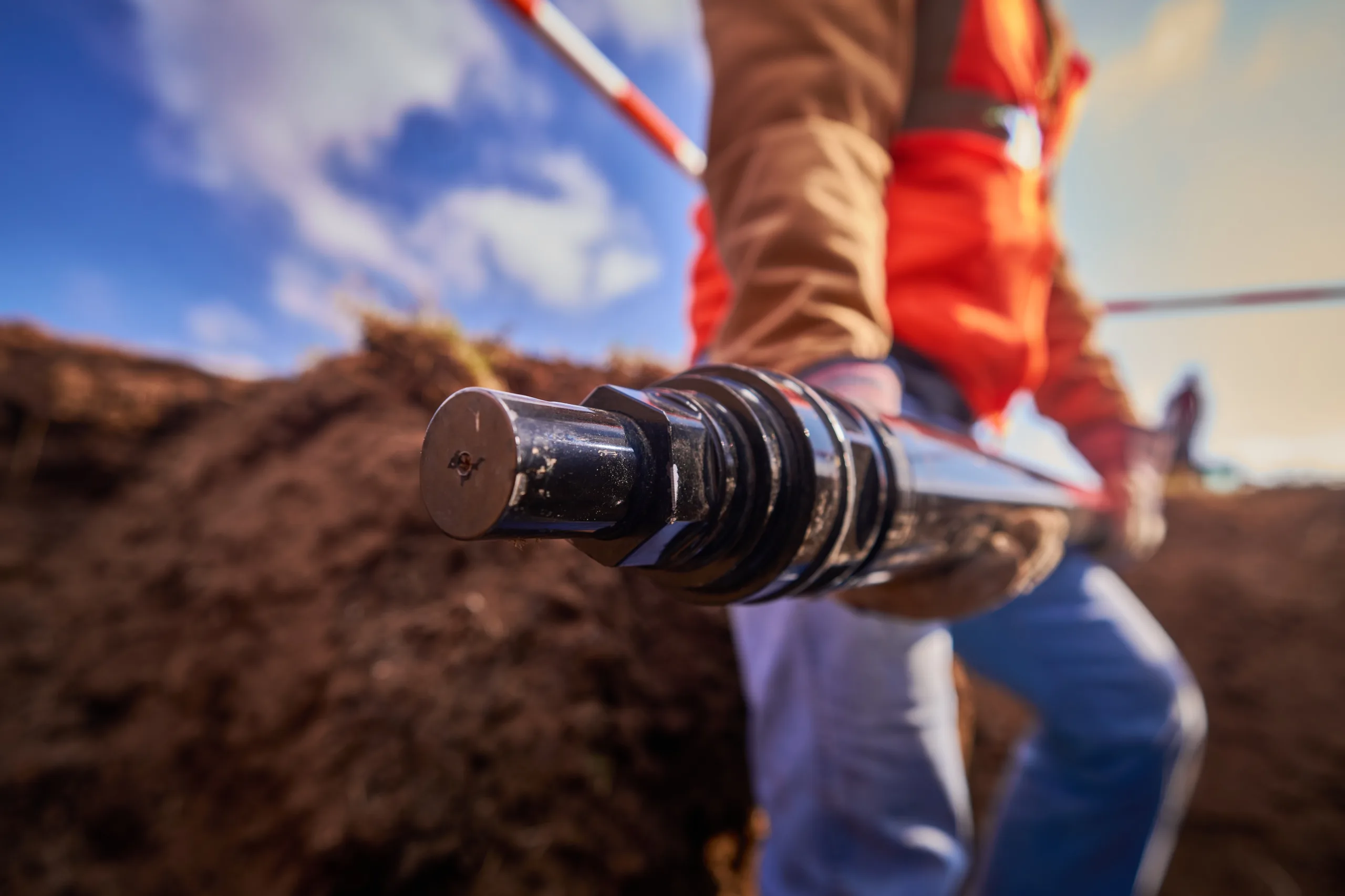

Exclusive Smart Head Design reduces tool swim in the widest range of soil conditions, provides outstanding productivity in compact and rocky soils, and outperforms other reciprocating-head designs in softer soils.

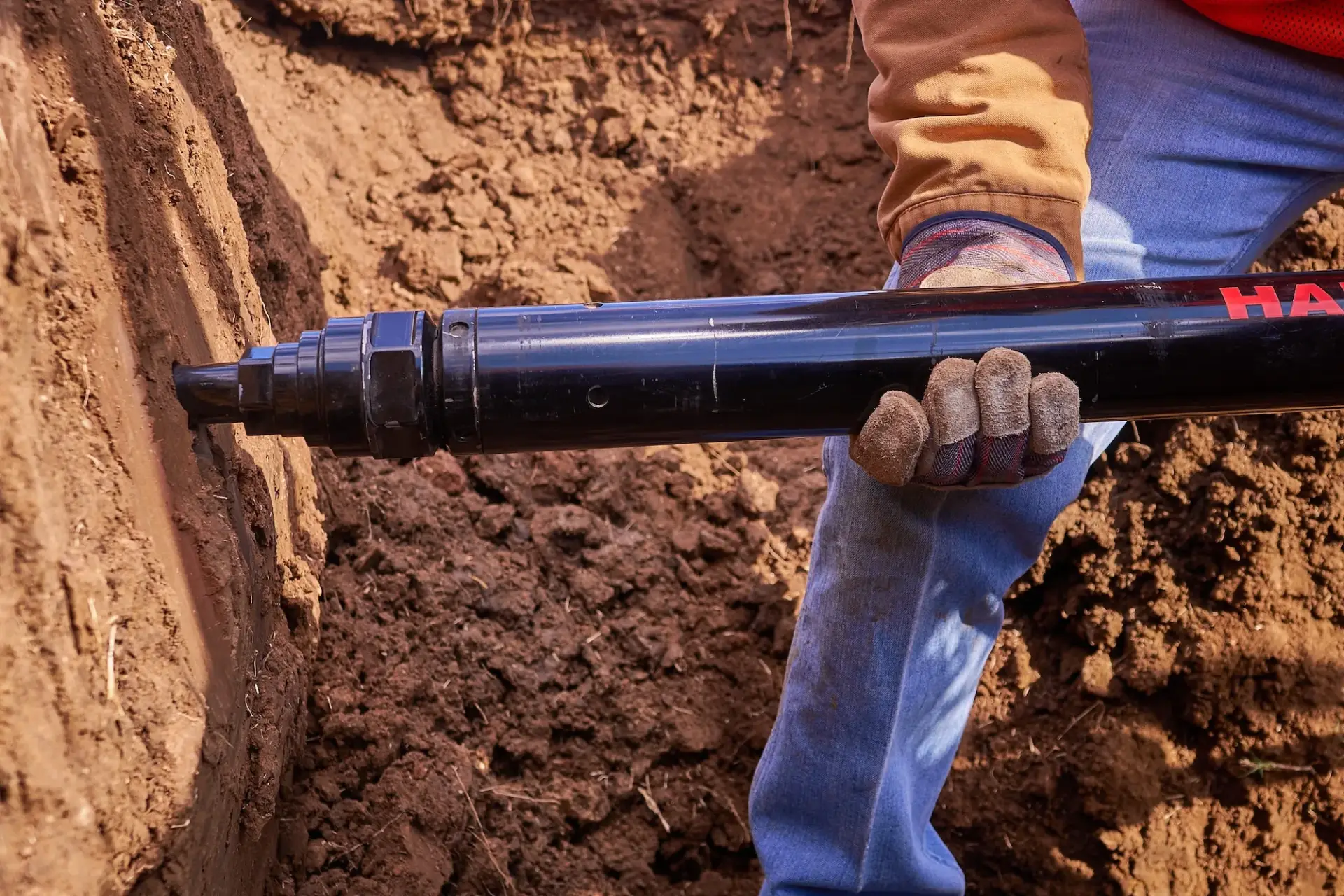

Redesigned body housing provides greater durability and tool life than any reciprocating-head tool in the industry.
Catamount is the world's easiest-starting piercing tool, so you can complete bores faster.

DETAILS, CATAMOUNT

Unlike competitive reciprocating-head models, the Catamount has no mechanical springs that wear out and have to be replaced, for longer-lasting productivity.
As opposed to competitors' rigid valve designs, the HammerHead Mole's valve is designed to be flexible to prevent tool binding during operation.
All wear surfaces of the reciprocating head can easily be replaced.
Solid, one-piece striker features wear rings that eliminate metal-to-metal contact, decrease wear and help sustain a high level of performance.
Available Power Port® quarter-turn reverse system is the only reverse mechanism that fully locks into gear during operation to prevent accidental direction change during the bore.

Exclusive, clamped rear anvil is designed for fast, easy field maintenance, provides up to 200 percent more clamp load, and is the most secure assembly on the market.

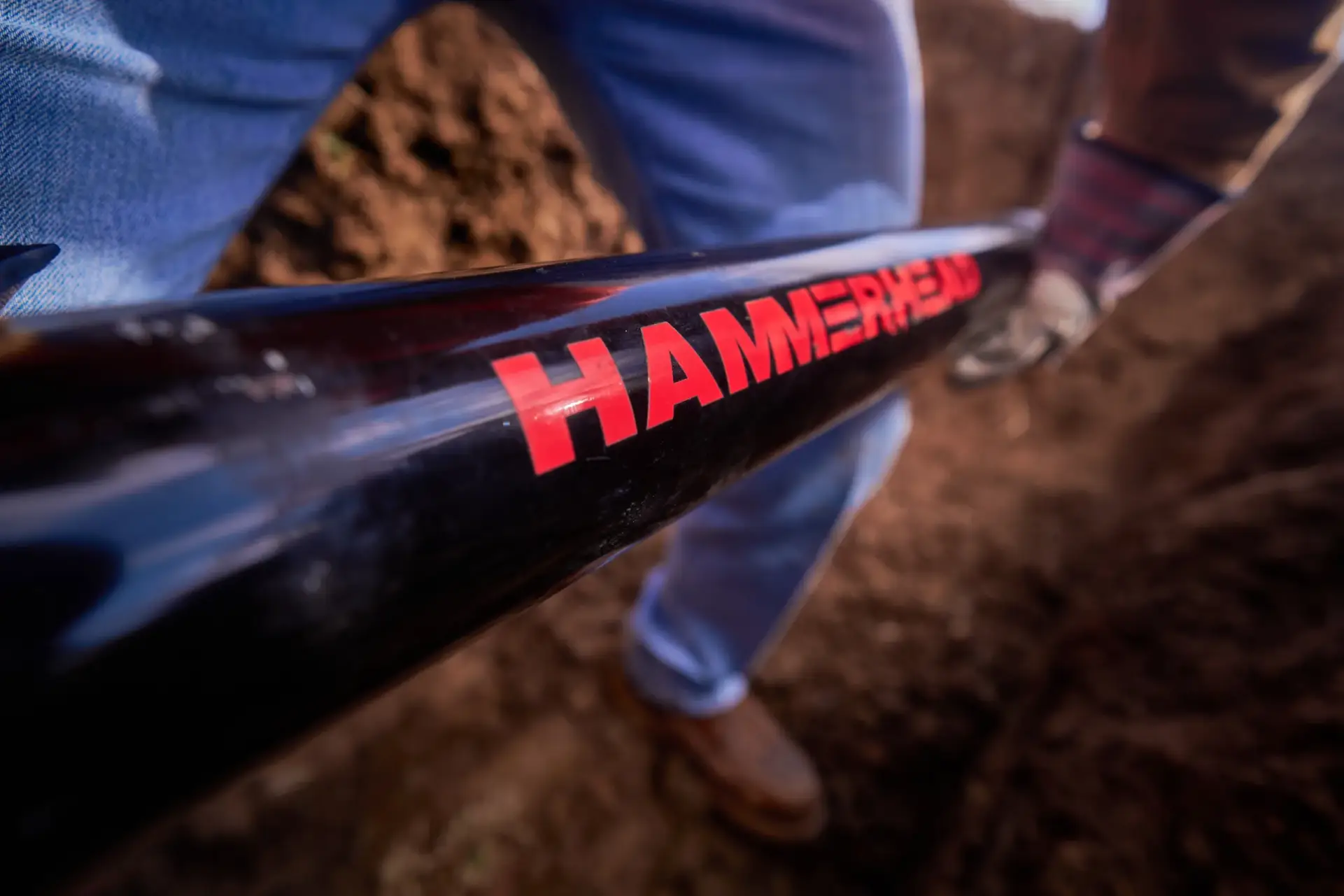

With a clamped rear anvil that is 200 percent stronger than any competitor's design, the tool can run at an industry-best 110 psi (7.6 bar), for greater boring power.
Low operating cost per foot of installation, relatively low purchase price, minimal maintenance and minimal training time required for operation add up to the lowest cost of ownership in the industry.
The Catamount tool line is available in diameters of 2.5" (67 mm), 3" (76 mm) and 4.375" (111 mm).

LITERATURE, Catamount

Select your language to view PDF

ENGLISH

2.50" (67 MM)

3.00" (75 MM)

4.375" (111 MM)

SPECIFICATIONS, CATAMOUNT

PRINT

2.50" (67 MM) CATAMOUNT™
WITH POWER PORT® REVERSE
Part number Model (SAE): 26122
Tool diameter
Length
Pressure
Weight
Boring diameter range
Maximum bore length

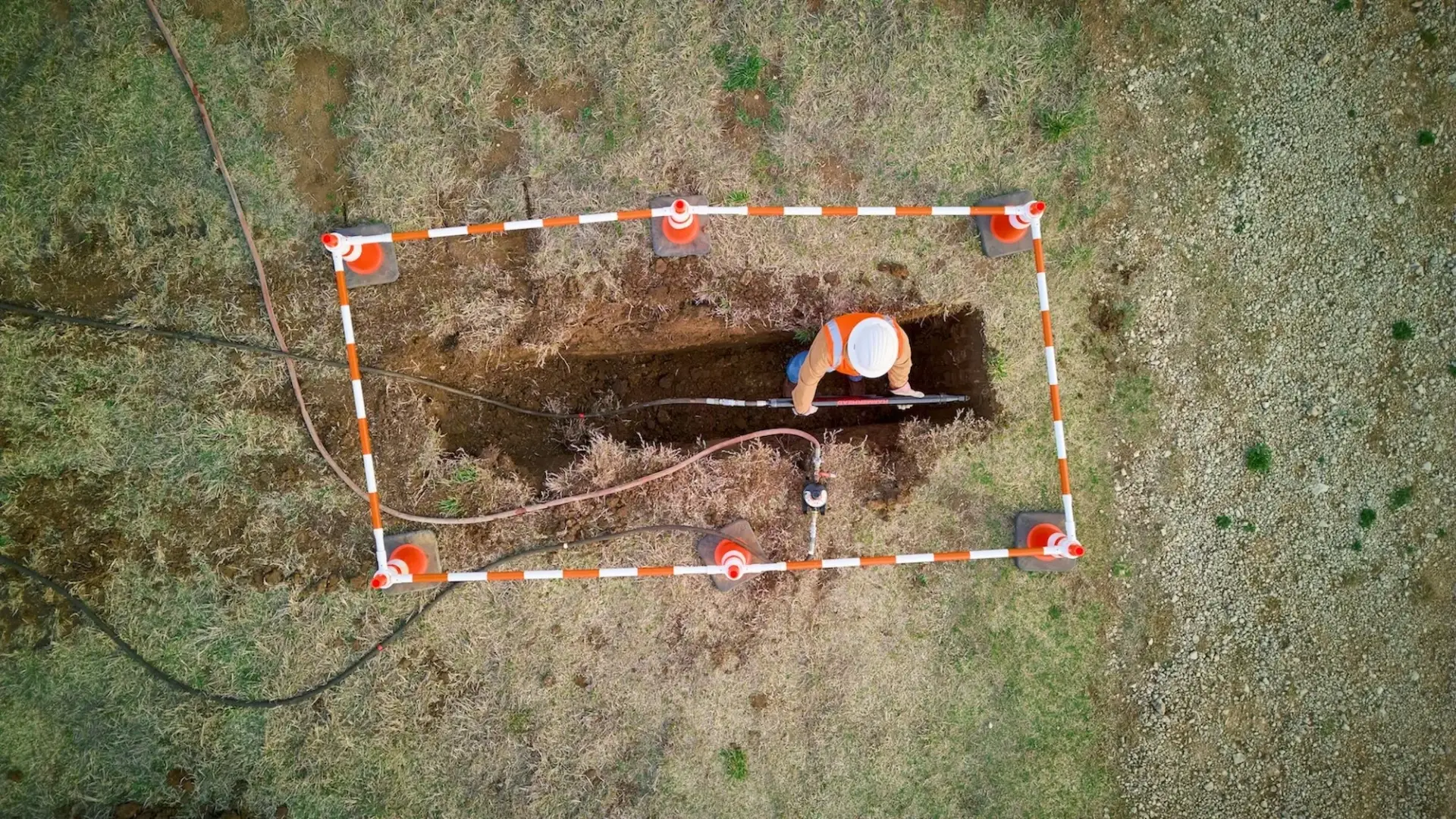

Size pit
Cycles/minute
Type drive
Air
Tailbolt access
Reverse
Boring
Pipe ramming
Pipe bursting

U.S.

2.64 in
49.3 in
110 psi
50 lbs
2.5 in
100 ft
1 x 3 ft
385
air
31 cfm
4
1/4 turn
yes
no
no

METRIC

67 mm
125.2 mm
7.6 bar
22.7 kg
63.5 mm
30 m
0.3 x 0.9 m

878 L/min

SPECIFICATIONS, CATAMOUNT

PRINT

3.00" (75 MM) CATAMOUNT™ WITH
POWER PORT® REVERSE
Part number Model (SAE): 30922
Tool diameter
Length
Pressure
Weight
Boring diameter range
Maximum bore length
Size pit
Cycles/minute
Type drive
Air
Tailbolt access
Reverse
Boring
Pipe ramming
Pipe bursting

U.S.

3 in
50.6 in
110 psi
69 lbs
3 in
150 ft
2 x 5 ft
370
air
32 cfm
4
1/4 turn
yes
no
no

METRIC

75 mm
128.6 mm
7.6 bar
31.3 kg
76.2 mm
46 m
0.6 x 1.5 m

906 L/min

SPECIFICATIONS, CATAMOUNT

PRINT

4.375" (111 MM) CATAMOUNT™ WITH POWER
PORT® REVERSE
Part number Model (SAE): 43222
Tool diameter
Length
Pressure
Weight
Boring diameter range
Maximum bore length
Size pit
Cycles/minute
Type drive
Air
Tailbolt access
Reverse
Boring
Pipe ramming
Pipe bursting

U.S.

4.38 in
63 in
110 psi
180 lbs
4.38 in
150 ft
2 x 6 ft
338
air
86 cfm
7
1/4 turn
yes
no
no

METRIC

111 mm
160 mm
7.6 bar
81.6 kg
111.13 mm
46 m
0.6 x 1.8 m

2435 L/min
