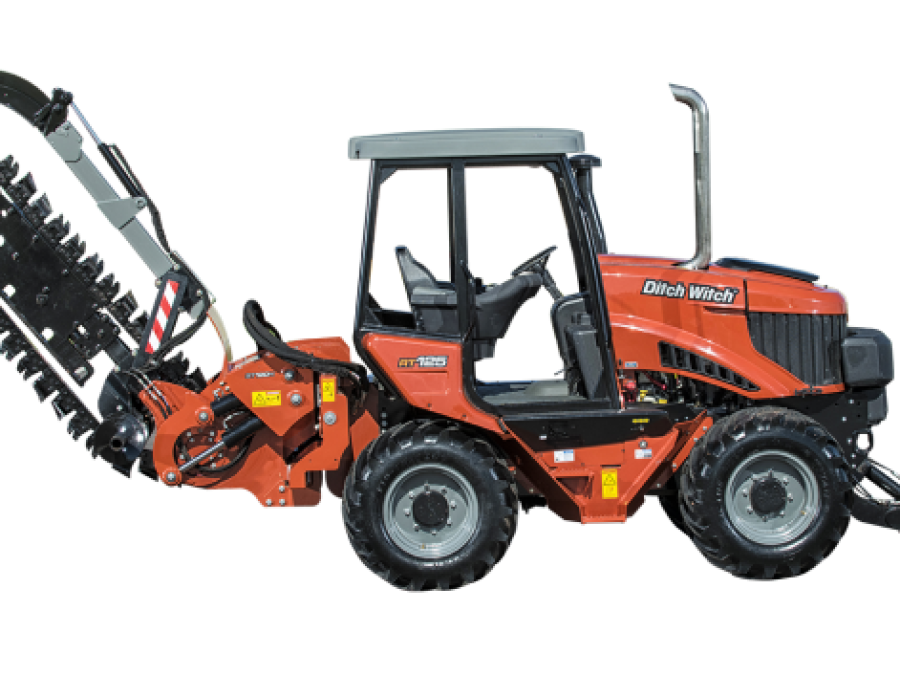

RT125 RIDE-ON TRENCHER
Versatility plus comfort equals productivity. As the most versatile member of the best-selling trencher family in the world, the Ditch Witch RT125 utility tractor can help you be more do more on every jobsite. A powerful and efficient 121-hp (90-kW) Tier 4 Deutz® diesel engine keeps the RT125 running strong all day long, while a wide range of attachments—trencher, plow, earth saw, backhoe, reel carrier, and trencher/plow combo—lets you tackle just about any job. It’s the go-to machine you’ll depend on.
121-hp (90-kW) turbocharged Tier 4 Deutz diesel engine keeps the RT125 running strong all day long.
Standard four-wheel drive helps provide superb traction and mobility in all kinds of jobsite conditions and applications.
Extraordinary versatility with a large selection of hydrostatic attachments to increase jobsite productivity.
Dial control design gives the operator precise control of the ground drive speed and attachments, maximizing production.
Cruise-control system senses engine load and automatically adjusts ground drive speed for maximum production.
Custom designed backfill blade control with an electronic float provides excellent controllability at your fingertips.
Massive one-piece rigid frame design increases capacity and endurance; optional tilt-frame configuration helps you dig a vertical trench on uneven ground.
Six-post Rollover Protective System (ROPS) includes a canopy; an enclosed cab and climate-control system are optional.
Removable side panels provide easy access to service areas; engine service points are conveniently located, and the oil level can be checked without opening the engine enclosure.
Solid backfill blade lift arms and cast blade pivot increase structural strength of the backfill components.
Durable steel hydraulic tank and fuel tanks make more efficient use of available space and are enclosed in a steel cradle.

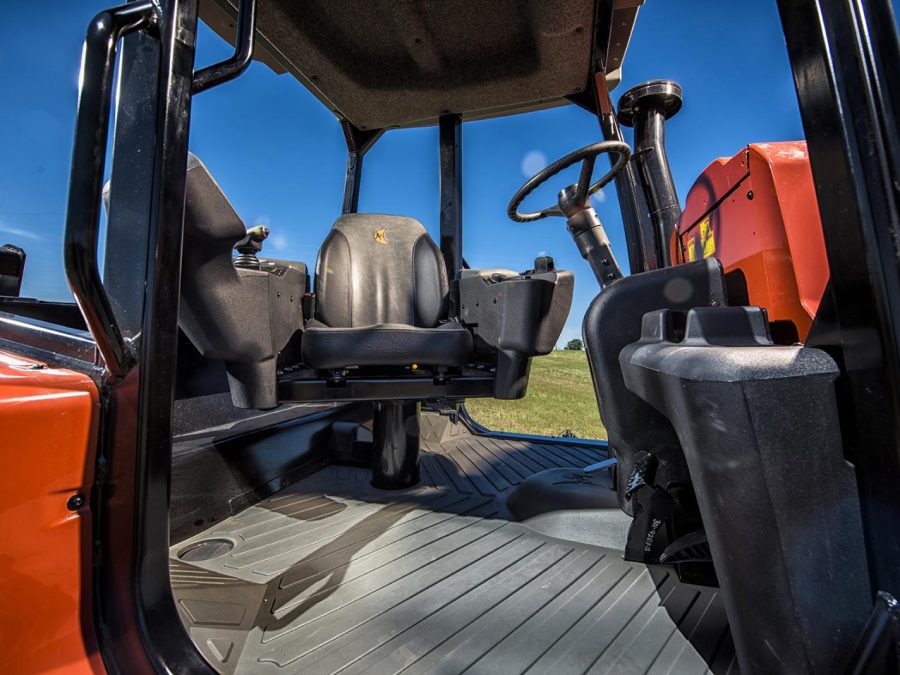

Ergonomically designed rotating seat is the ultimate in comfort. The machine controls console rotates 120-degrees with the operator for easier, more comfortable operation.
Cab design adds plenty of legroom for extreme comfort. Updated foot pedal design, easy-to-read gauges and controls, and a tilt steering column provide maximum productivity.
5-inch color LCD engine display provides all engine information and diagnostics while rotating with the operator so it’s always there for you to easily view.
Rubber isolators between the cab and frame reduce vibration and provides a comfortable ride for the operator.
Your Ditch Witch equipment is backed by a worldwide network of dealers you can count on for unmatched commitment to your success. From genuine Ditch Witch parts to factory-trained service to expert advice, your Ditch Witch dealer has it all for you.
|Angle of approach||25°||25°|
|Height||115 in||2920 mm|
|Height||105 in.||2667 mm|
|Nose to rear mount length||125 in||3175 mm|
|Length - transport||154 in||3910 mm|
|Wheelbase||79 in||2005 mm|
|Width||82 in||2085 mm|
|Tread||64 in||1625 mm|
|Forward speeds (Low/Low)||.5 mph||.8 k/h|
|Forward speeds (Low/High)||1.3 mph||2.1 k/h|
|Forward speeds (High/Low)||4.5 mph||7.2 k/h|
|Forward speeds (High/High)||8.0 mph||12.87 k/h|
|Reverse speeds (Low/Low)||.5 mph||.8 k/h|
|Reverse speeds (Low/High)||1.3 mph||2.1 k/h|
|Reverse speeds (High/Low)||3.2 mph||5.1 k/h|
|Reverse speeds (High/High)||5.5 mph||8.8 k/h|
|Vehicle clearance circle (SAE) wall to wall with backfill blade (Front steer only)||35 ft||10.7 m|
|Vehicle clearance circle (SAE) wall to wall with backfill blade (Front and rear steer)||21 ft||6.4 m|
|Ground clearance||14 in||356 mm|
|Basic unit weight||9700 lb||4400 kg|
|Maximum allowable tractor weight||22000lb||9979 kg|
|Front counterweight||1300 lb||590 kg|
|Side counterweight (each)||250 lb||114 kg|
|Blade width||80 in||2030 mm|
|Blade height||17 in||430 mm|
|Lift height above ground||26 in||660 mm|
|Blade drop below ground||10 in||254 mm|
|Maximum swing angle (left/right)||30°||30°|
|Tilt angle (up/down)||12°||12°|
|Aspiration||Turbocharged, Charge Air Cooled|
|Number of cylinders||4|
|Displacement||221 in3||3.6 L|
|Bore||3.86 in||98 mm|
|Stroke||4.72 in||120 mm|
|Manufacturer’s gross power rating (SAE J1995)||121 hp||90 kW|
|Estimated net power rating (SAE J1349)||113 hp||84 kW|
|Rated speed||2300 rpm||2300 r/min|
|Maximum engine tilt angles (Longitudinal)||30°||30°|
|Maximum engine tilt angles (Lateral)||30°||30°|
|Emissions compliance (highly regulated countries)||EPA Tier 4 Final||EU Stage IV|
|Emissions compliance (less regulated countries)||EPA Tier 4i||EU Stage IIIb|
|Ground drive transmission||hydrostatic Driven 2-speed|
|Differentials||planetary front and rear with rear steering|
|Service brake||Disc Type , foot operated|
|Parking brake||Disc Type, SAHR|
|Tires||38x 18.00-20 NHS(TL)|
|Attachment drive transmission||hydrostatic|
|Ground drive pump capacity @ 2300 rpm||27.5gpm||104 L/min|
|Ground drive pump relief pressure @ 2300 rpm||5300 psi||365 bar|
|Attachment pump capacity @ 2300 rpm||45 gpm||170.5 L/min|
|Attachment pump relief pressure @ 2300 rpm||6500 psi||448 bar|
|Auxiliary pump capacity @ 2300 rpm||5.1 gpm||19.3 L/min|
|Auxiliary pump relief pressure @ 2300 rpm||3000 psi||206 bar|
|Steering pump capacity @2300 rpm||8.6 gpm||32.5 L/min|
|Steering pump relief pressure @2300 rpm||3000 psi||206 bar|
|Fuel tank||38 gal||144 L|
|Engine oil||8.5 qt||8 L|
|Hydraulic reservoir||25 gal||95 L|
|Hydraulic system||30 gal||114 L|
|Cooling system||4.25 gal.||16.1 L|
|DEF tank||2.6 gal||10 L|
|Battery (2 used)|
|Group 65, SAE res. Cap 165 min., SAE cold crank @ 0° F (-18° C), 875 amp|
|Auxiliary power outlet - 12 volt, 10 amp|
|Average vibration transmitted to the operator’s hand during normal operation is 5.98 m/sec2.|
|Average vibration transmitted to the operator’s whole body during normal operation does not exceed 0.64 m/sec2.|
|Operator seat per ISO 6683 / SAE J386|
|Operator 91 dBA sound pressure per ISO 6394|
|Exterior 107 dBA sound power per ISO 6393.|
|Unless otherwise specified, all figures are for standard equipment only.|
|Specifications are called out according to SAE recommended procedures.|
|Due to selected options, delivered equipment may not necessarily match that described.|
|Specifications are general and subject to change without notice.|
|If exact measurements are required, equipment should be weighed and measured.|
