| DIMENSIONS |
U.S. |
METRIC |
| Angle of approach |
34° |
|
| Height, to highest point |
117 in |
2.97 m |
| Length, nose to rear mount |
128 in |
3.25 m |
| Length, tractor transport |
160 in |
4.06 m |
| Wheelbase |
73 in |
1.85 m |
| Width (rubber tracks/tires) |
89 in |
2.26 m |
| Track gauge/tread |
71 in |
1.8 m |
| OPERATION |
| Forward speeds |
| Low/low |
2.1 mph |
3.4 km/h |
| High/low |
4 mph |
6.4 km/h |
| High/high |
7.2 mph |
11.6 km/h |
| Reverse speeds |
| Low/low |
2.1 mph |
3.4 km/h |
| High/low |
4 mph |
6.4 km/h |
| High/high |
4.2 mph |
6.8 km/h |
| Vehicle clearance circle (SAE), wall-to-wall, w/ backfill blade |
| Front steer only |
39.5 ft |
12 m |
| Coordinated steer |
27 ft |
8.2 m |
| Basic unit weight |
15,240 lb |
6913 kg |
| Maximum allowable tractor weight |
22,800 lb |
10 340 kg |
| Front counterweight |
2100 lb |
950 kg |

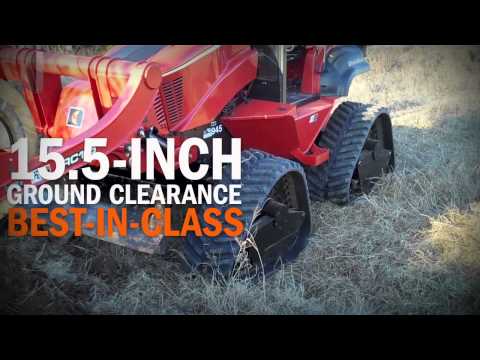

| Ground clearance |
15.5 in |
394 mm |
| BACKFILL BLADE |
U.S. |
METRIC |
| Blade width |
80 in |
2.03 m |
| Blade height |
17 in |
430 mm |
| Lift height, above ground |
26 in |
660 mm |
| Blade drop, below ground |
10 in |
254 mm |
| Maximum swing angle, left/right |
30° |
|
| Tilt angle, up/down |
24° |
|
| POWER |
U.S. |
METRIC |
| Engine |
John Deere 4045HF285 |
|
| Fuel |
Diesel |
|
| Cooling medium |
Liquid |
|
| Injection |
Direct |
|
| Aspiration |
Turbocharged & charge air cooled |
|
| Number of cylinders |
4 |
|
| Displacement |
275 in3 |
|
| Bore |
4.19 in |
106 mm |
| Stroke |
5 in |
127 mm |

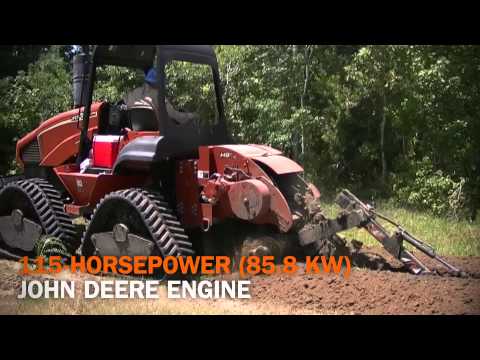

| Manufacturer's gross power rating* |
115 hp |
86 kW |
| Estimated net power rating** |
103 hp |
77 kW |
| Rated speed |
2400 rpm |
|
| Engine tilt angles, maximum |
| Longitudinal |
30° |
|
| Lateral |
30° |
|
| Emissions compliance |
EPA Tier 3 |
EU Stage IIIA |
| POWER TRAIN |
U.S. |
METRIC |
| Ground drive transmission |
Hydrostatic |
|
| Attachment drive transmission: Hydrostatic, lever-operated, speed infinetely variable from zero to maximum |
| Differentials: Planetary front and rear with rear steering |
| Service brake |
Hydrostatic |
|
| Parking brake |
Disc, hand-operated |
|
| Tracks |
450 x 86 x 42, rubber, chevron pattern |
|
| HYDRAULIC SYSTEM |
| Ground drive @ 2500 rpm |
| Pump capacity |
51.5 gpm |
195 L/min |
| Pump relief pressure |
6200 psi |
427.5 bar |
| Attachment |
| Pump capacity |
51.5 gpm |
195 L/min |
| Pump relief pressure |
6200 psi |
427.5 bar |
| Auxiliary |
| Pump capacity |
14.96 gpm |
56.6 L/min |
| Pump relief pressure |
3300 psi |
227.5 bar |
| FLUID CAPACITIES |
U.S. |
METRIC |
| Fuel tank |
38 gal |
144 L |
| Engine oil |
16 qt |
15 L |
| Hydraulic reservoir |
20 gal |
76 L |
| Hydraulic system |
25 gal |
95 L |
| Cooling system |
18 qt |
16.8 L |
| BATTERY |
U.S. |
METRIC |
| Group |
65 |
|
| SAE reserve capacity rating |
165 min |
|
| SAE cold crank rating @ 0° F (-18° C) |
875 amps |
|
| Auxiliary power outlet |
12V, 10 amps |
|
